Description
metal gear servo motor 20kg Metal Gear Servo (CCW rotation) for Viper Lifter & Super Scooper-ClearanceReplacement Servo for the Viper Lifter Add On. Input: 4. 8V 10. 0V If your robot's battery is higher than 9V, simply run the servo power from a 9V regulator. Specifications: Range of Motion: 270 on a full 500 2500 PWM range. On a standard robot remote you'll have closer to 1000 2000 and achieve a real life travel of about 120. Rotation: Counter Clockwise Dimensions: 40mm x 40mm x 20mm (1. 57" x 1. 57" x 0. 79") Weight: 62g (2. 19oz) Construction: All

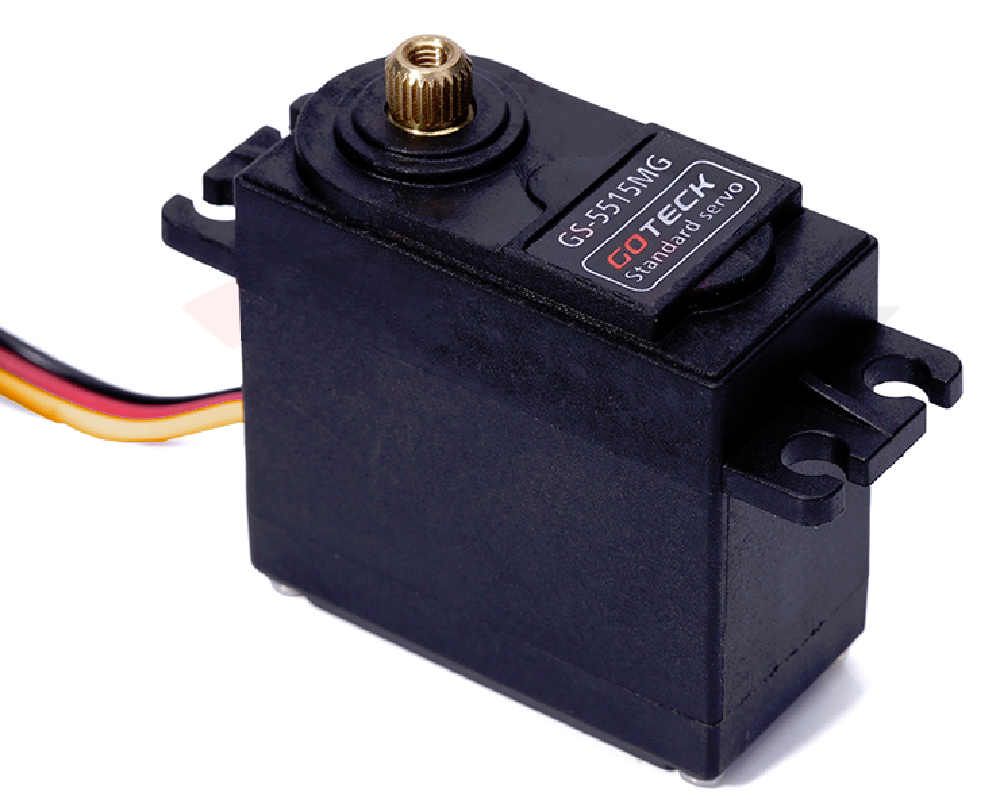

Replacement Servo for the Viper Lifter Add-On.
Input: 4.8V - 10.0V If your robot's battery is higher than 9V, simply run the servo power from a 9V regulator.
Specifications:
- Range of Motion: 270° on a full 500-2500 PWM range. On a standard robot remote you'll have closer to 1000-2000 and achieve a real life travel of about 120°.
- Rotation: Counter Clockwise
- Dimensions: 40mm x 40mm x 20mm (1.57" x 1.57" x 0.79") Weight: 62g (2.19oz)
- Construction: All metal gears, double ball bearing
- Accepts 25T Futaba-splined servo arms.
Performance Info:
- 9.0V
- Speed: 0.1 sec/60 degrees
- Stall Torque: 35kg-cm
- 7.4V (2s)
- Speed: 0.15 sec/60 degrees
- Stall Torque: 30kg-cm
- 6.0V
- Speed: 0.2 sec/60 degrees
- Stall Torque: 22kg-cm
